Universal reel center distance 142, 165, 185 mm
Built-in reel for roller shutters with belt operation.
Available in various interaxis sizes (distance between holes) and for windows than for balconies. Complete with plate without holes in various colors.
Depending on the balcony or window, you can choose between three different winding lengths:
- 6 m (window) </ li >
- 8 m (balcony)
- 12 m (balcony)
Universal roller shutter roller
Universal reel center distance 142, 165, 185 mm
Built-in reel for roller shutters with belt operation.
Available in various interaxis sizes (distance between holes) and for windows than for balconies. Complete with plate without holes in various colors.
Depending on the balcony or window, you can choose between three different winding lengths:
- 6 m (window) </ li >
- 8 m (balcony)
- 12 m (balcony)
€7.50
VAT included
Rating:
(0)
The rewinder is applied in the special wall-mounted box and allows you to collect the strap.

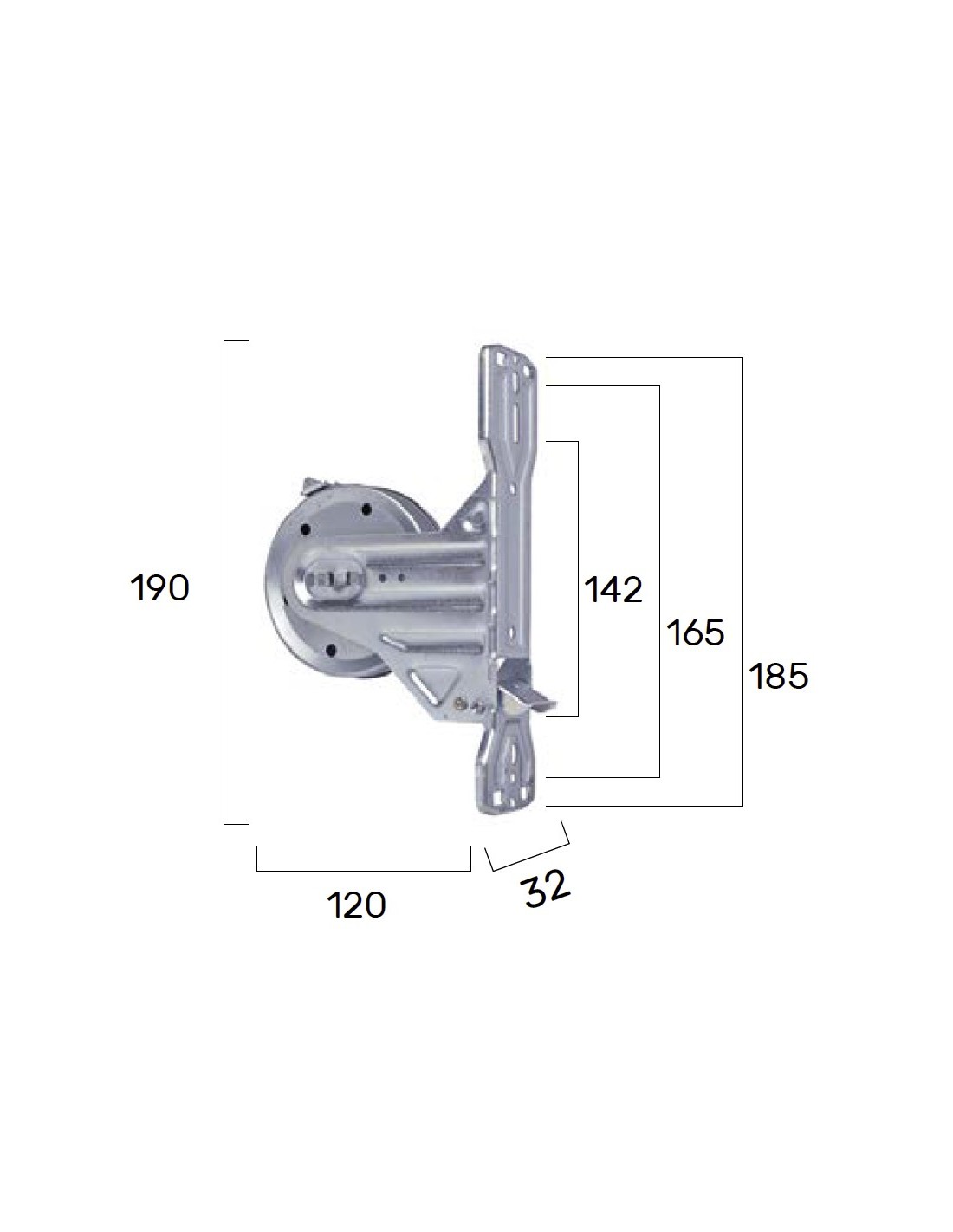

The center distance is the measurement from hole to hole in which the screws that support the reel are screwed , while 6 meters or 12 meters is the maximum length that the strap can have to wrap. The most commonly used standard wheelbases are 16.5 cm and 18.5 cm. But they can also be 12.5 cm, 14.2 cm, 21.0 cm and 26.0 cm.
Technical features:
Rewinder height about 190mm
Rewinder width about 45mm
The 6m reel has a depth of 120mm
The 8m reel has a depth of 160mm
< p> The 12-meter reel has a depth of 245mm
Rewinder nozzle about 1.3cm
The external plate is without holes
The plate is 58 mm in width and 204 mm in height.
Depending on the balcony or window, you can choose between three different winding lengths:
- 6 mt ( window)
- 8 mt (balcony)
- 12 mt (balcony)
NB the strap is not included (see the Nylon strap or the Cotton Strap ).
AVVUNI06KLI
