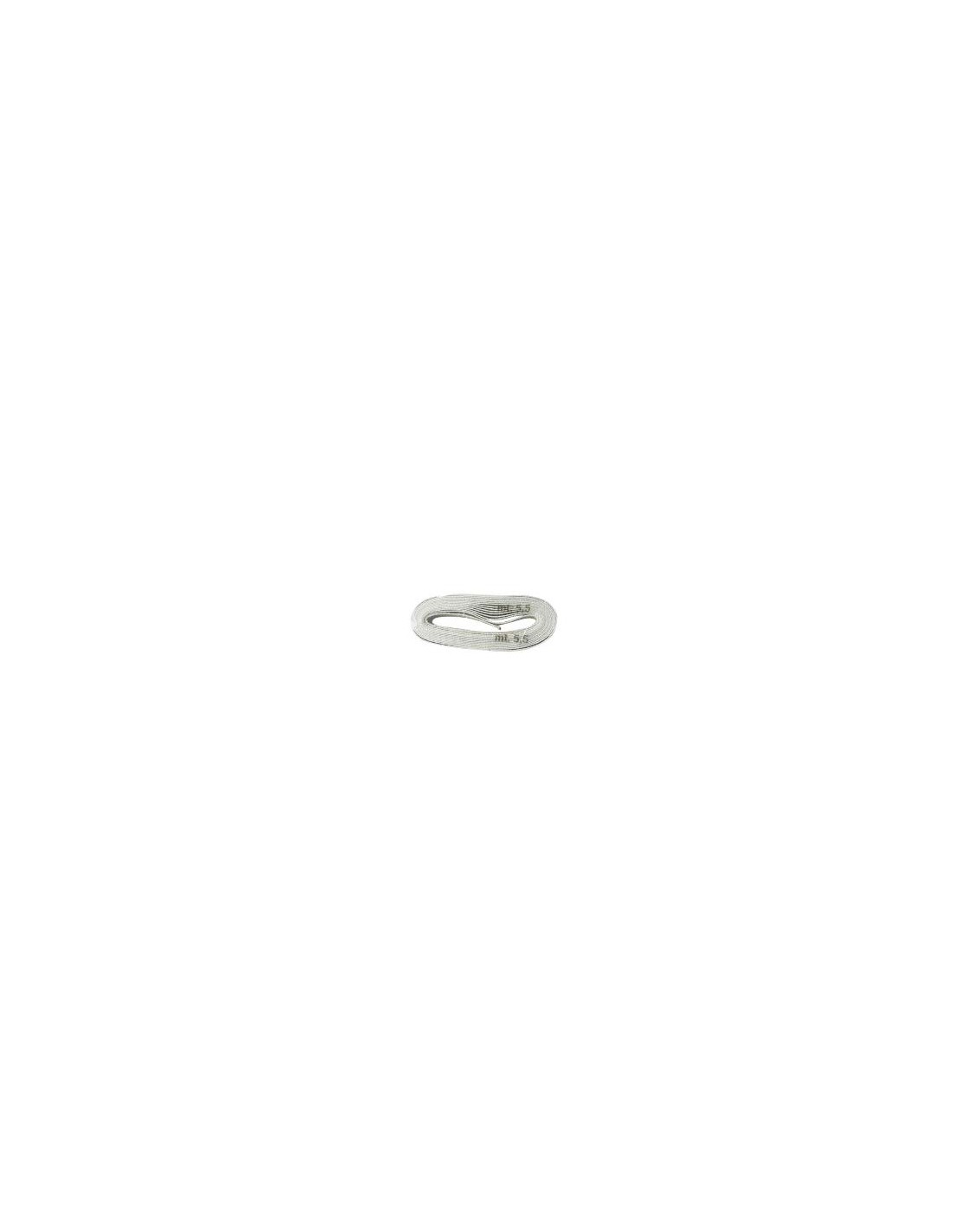

Cotton strap for winder (window, balcony and 50mt roll)
Cotton strap for winder (window, balcony and 50mt roll)

Cotton strap for winder (window, balcony and 50mt roll)

Cotton belt for roller shutters

Measurements:

  • 22x1.8 mm - 5.5 linear meters (window)
  • 22x1.8 mm - 7.5 linear meters (balcony)
  • 22x1.8 mm - Roll of 50 linear meters

Color: Gray

The strap from 5 meters is suitable for the reels identified by the specifications 6 meters.

The 7 meters strap is suitable for the reels identified by the specifications 12 meters.

€2.90
VAT included
Strap size for plastic boxes: 5,5mt
Quantity

Rating:
(0)

Compatible reels:

- Universal rewinder with Minimal plate without holes.

- Semi-recessed rewinder complete with strap, cassette and plate.

- Rewinder semi-recessed complete with strap, box and flat plate.

- Recessed reel with stainless steel plate.

Instructions for replacing the strap:

Remove the close the box and manually roll the shutter onto the roller.

Hold the shutter steady by inserting a stop in the side rails.

Photo 1 - Once the belt to be replaced has been completely unwound , remove it by cutting the knot that secures it to the pulley. Thread the new belt through the belt loop and into the pulley cut making a knot.

Photo 2 - Pull the belt and tension the knot. Lower the roller shutter bearing in mind that the belt must hang over the roller shutter by about 50cm.

Photo 3 - Unscrew the roller shutter plate from the wall. Remove the old belt from the spring drum and insert the new one into the belt guide.

Photo 4 - Rotate the roller shutter drum in such a way as to fully load the spring inside it.

Photo 5 - Fasten the belt by holding the drum still, taking care not to let it go suddenly.

CINCOCONF55
