- Flag Configurabile
Top-hung aluminum frame
The top-hung aluminum frame with anti-wind brush allows light and air to enter even with the shutter down. Aluminum frame (silver or bronze).
Available with both lateral and central lever.
Important notes before purchasing.

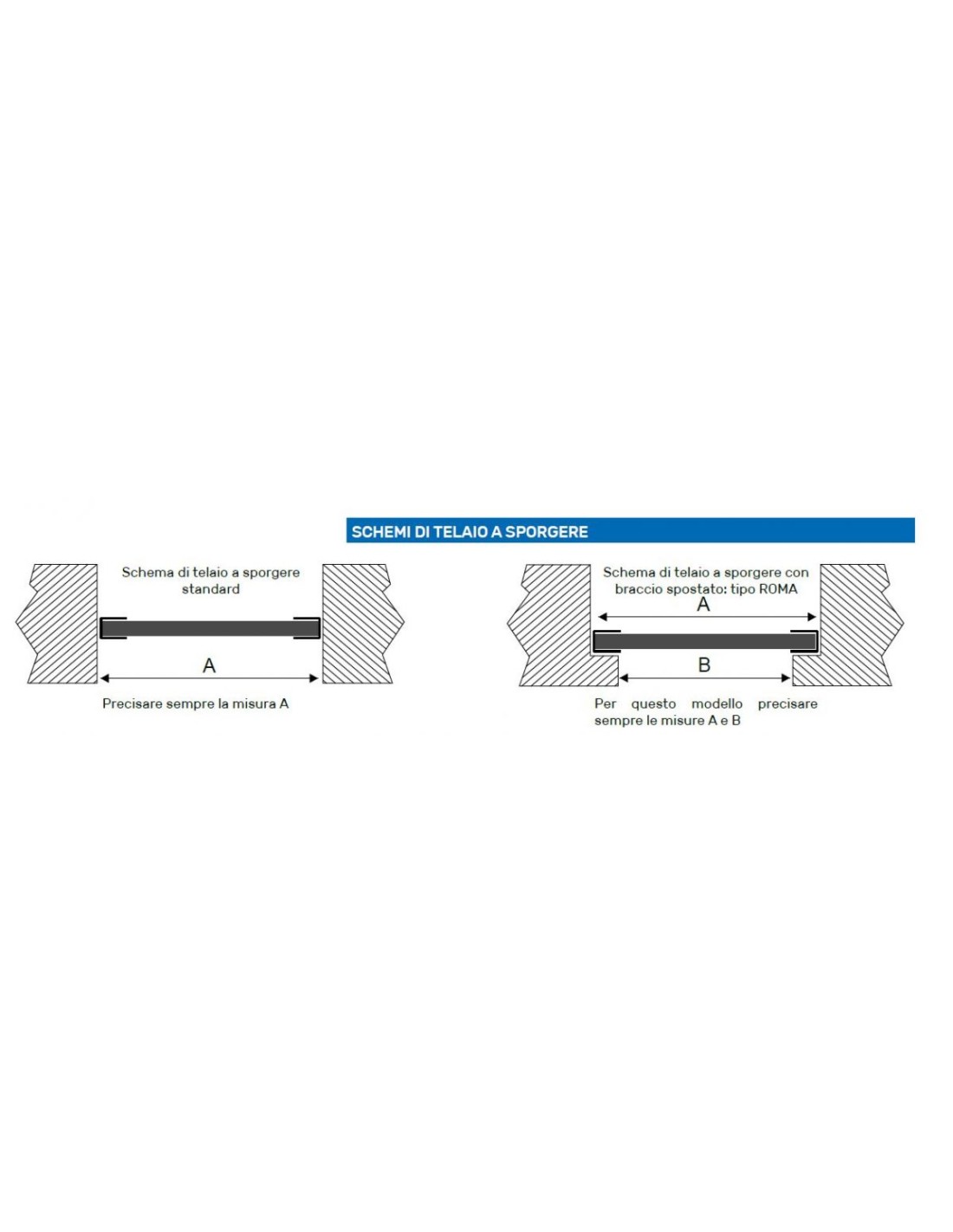

The purchase page requires the insertion of two widths: width A span>, which would be the largest available inside the light compartment; and width B which would be the smallest available inside the light compartment.
To detect the measurements and understand what is meant by width A and B, look at the following image: IMG .

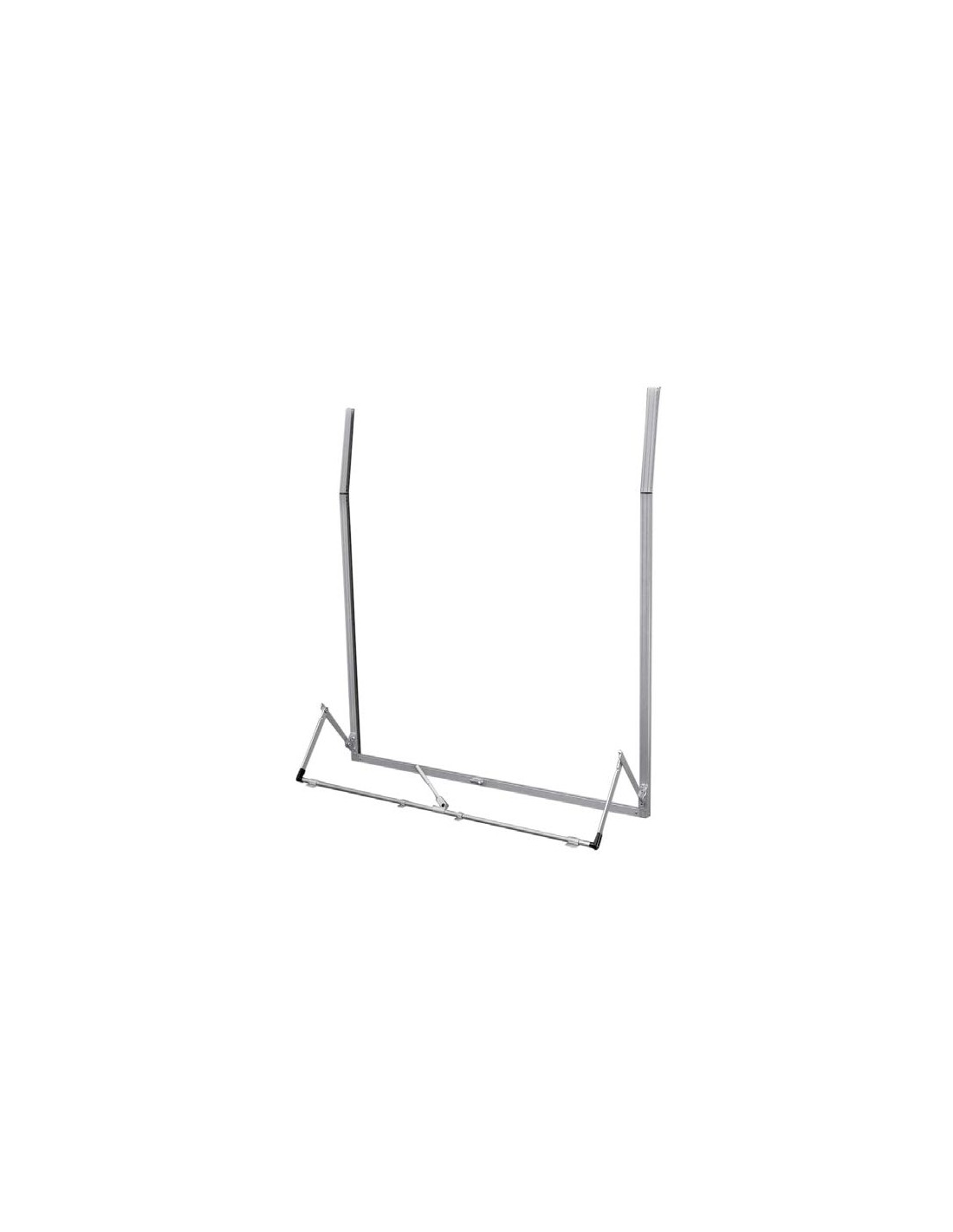

Aluminum frame for projecting rails Roma type (2 widths)
Top-hung aluminum frame
The top-hung aluminum frame with anti-wind brush allows light and air to enter even with the shutter down. Aluminum frame (silver or bronze).
Available with both lateral and central lever.
Important notes before purchasing.
The purchase page requires the insertion of two widths: width A span>, which would be the largest available inside the light compartment; and width B which would be the smallest available inside the light compartment.
To detect the measurements and understand what is meant by width A and B, look at the following image: IMG .
€164.90
VAT included
Rating:
(0)

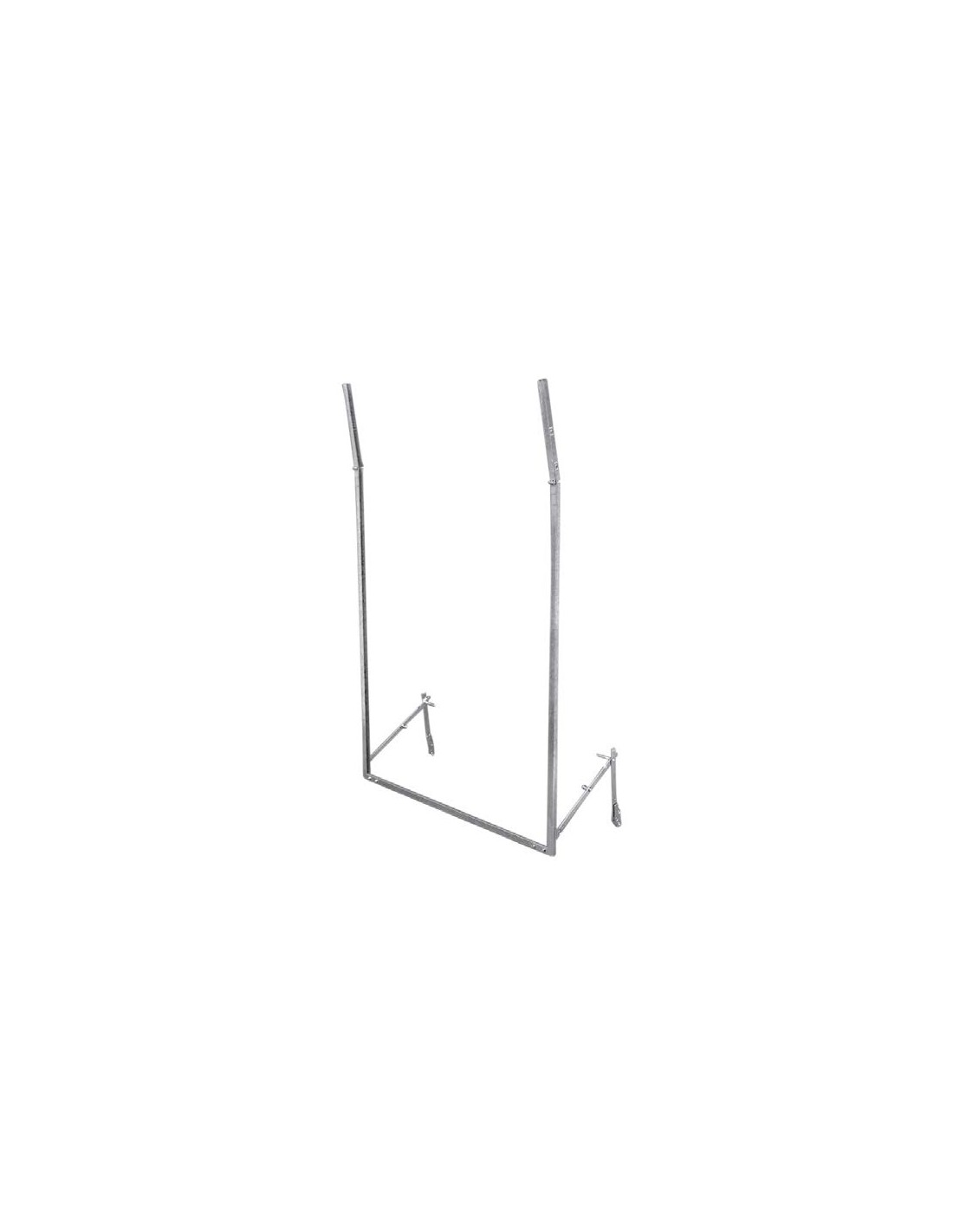

Projecting aluminum frame with lateral or central lever
The projecting aluminum luminaire with guides equipped with anti-wind and anti-friction brushes, type Roma, allows air and light to enter even at shutters lowered thanks to the articulated guides that allow the shutter to extend outwards.
Available with both central and lateral lever.
All-aluminum frame and mechanism

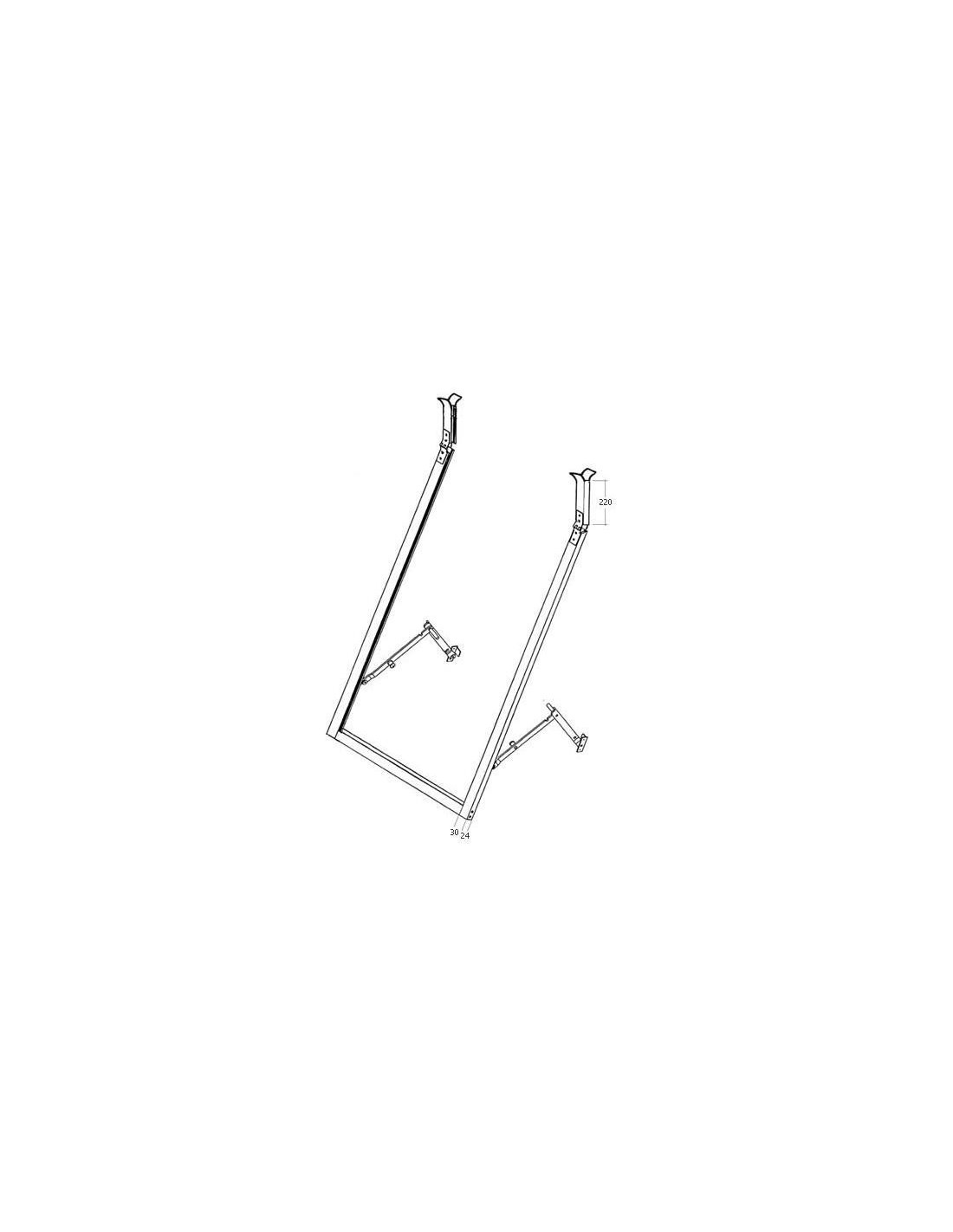

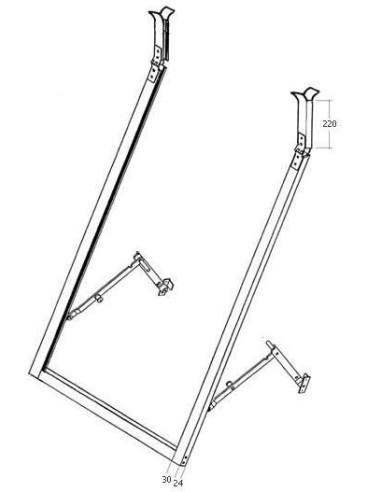

< p> Features :Top-hung aluminum luminaire with lateral or central lever
Roma type connection
32x28 aluminum guides with rubber gasket.
Arrangement on the upper part of the guides with invitation to facilitate the sliding of the shutter.
Hinges and connection angles.
Aluminum arms, extension of about 54cm.
U-beam 32x28mm.
Rod diameter 14mm.
Important notes before purchase.
The purchase page includes the insertions chin of a two widths: width A , which would be the largest available inside the light compartment; and width B which would be the smallest available inside the light compartment.
To take the measurements and understand what is meant by width A and B, see the following image: IMG .
